This is a replica of Ash's Mechanical Arm seen throughout 'Army Of Darkness'. As the continuity on the screen original varies from shot to shot (especially as it's being constructed), the overall design is somewhat an amalgamation pulling together various details seen over the film, rather than an exact match to one particular version. You can click to enlarge the pictures below.

This Mechanical Arm is a non-working prop, in-so-much that it can be worn over someone's arm, but it's not mechanised on it's own. It can only be worn right-handed, and I don't make a left-handed version.

Printable EvilDeadChainsaws Hand Sizing Guide Sheet PDF Sized to print out on A4 paper (210mm x 297mm), be sure to print as 'actual size' in your PDF reader

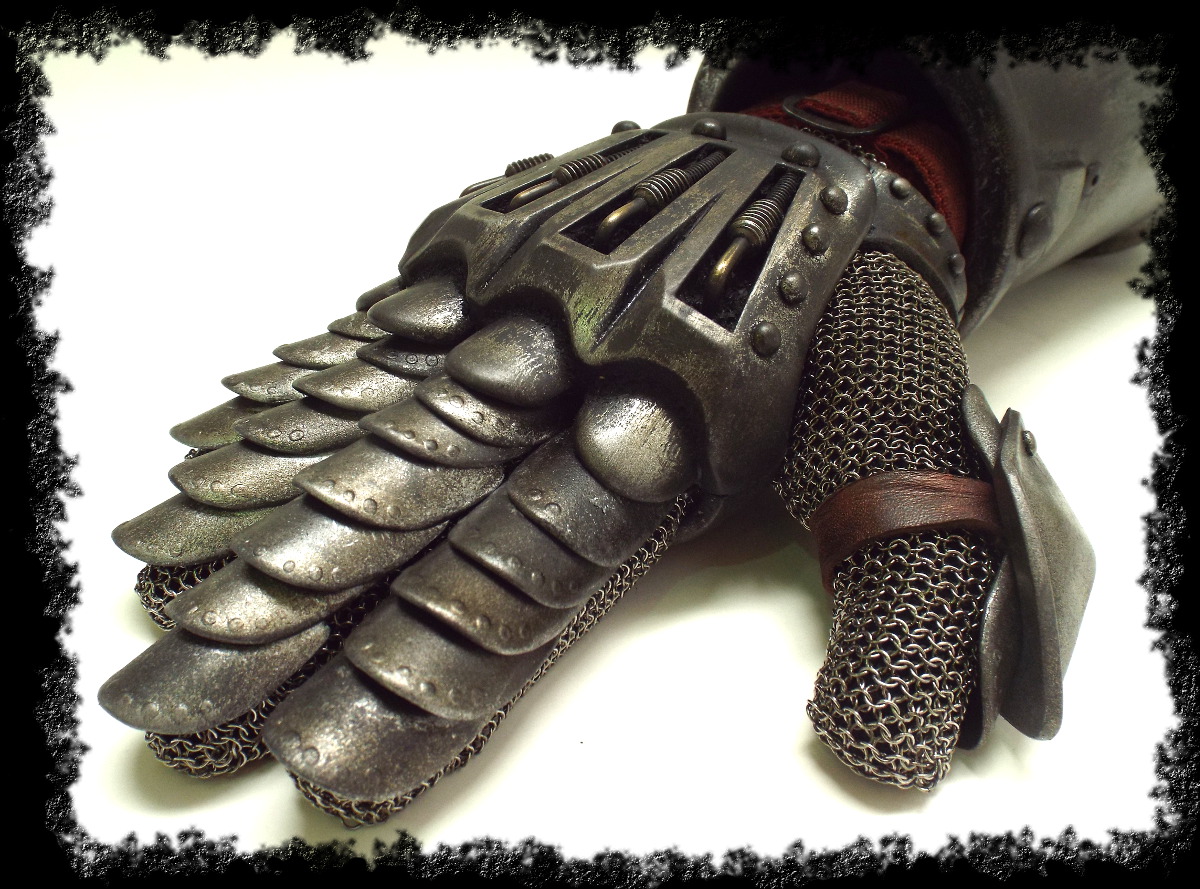

The hand cover is held shut using two little loose-pin hinges; one above, and one below the thumb along the seam. When the hand cover is shut, the hinges on both sides align with each-other and a veneer pin can be inserted into each one firmly holding the hand cover shut. Doing this is not all that easy with one hand, so if wearing it you might need to get someone else to do that bit for you.

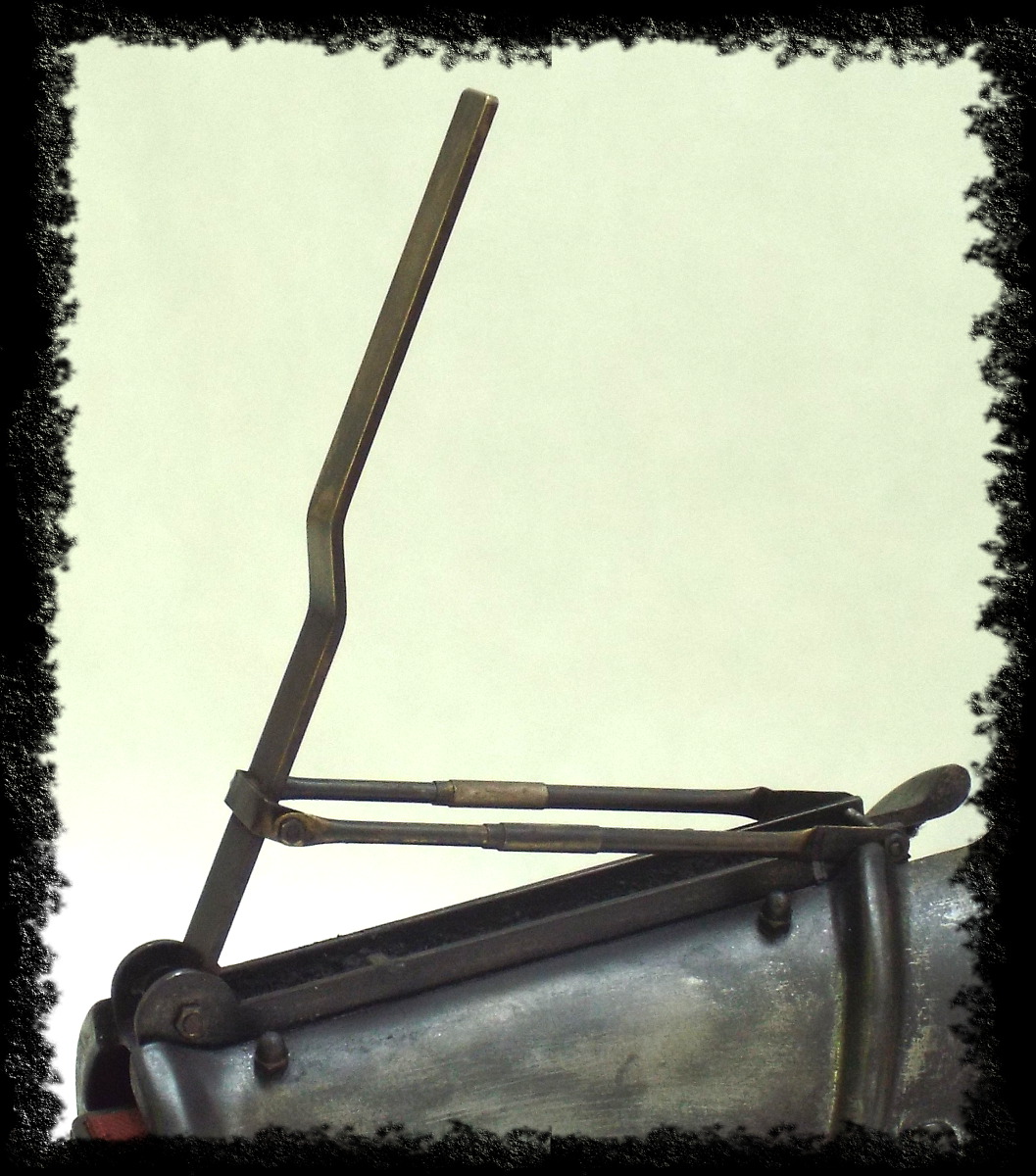

The brass/leather arm frame is attached to the inside of the vambrace by Velcro pads. It can be re-positioned either further forward or back (moving the elbow pivot point forward for people with shorter arms, or back for people longer arms) or rotated to change the orientation of the vambrace while worn. It's shown in a number of orientations in the film, so it's really down to you how it's positioned.

The bolts at the elbow point of the frame are loose so the frame will move freely with your elbow, but they can can be tightened to hold the brass frame at a particular angle for display. The leather straps can be adjusted a few inches either way to accommodate thicker or thinner arms, but again if your arm is too thick for the straps, then you may not be able to wear it.

It's supplied with two black under-gloves; one for use with your own hand, and the other is padded to use when displaying. The padded glove has articulated fingers which can be positioned. While wearing it, taking the chain-mail glove on and off repeatedly over time will shred the black wool glove underneath, so this will need to be replaced periodically. You can find them sites like Ebay for around £1 a pair, sold as 'magic', 'stretch', or 'one size fits all' gloves.

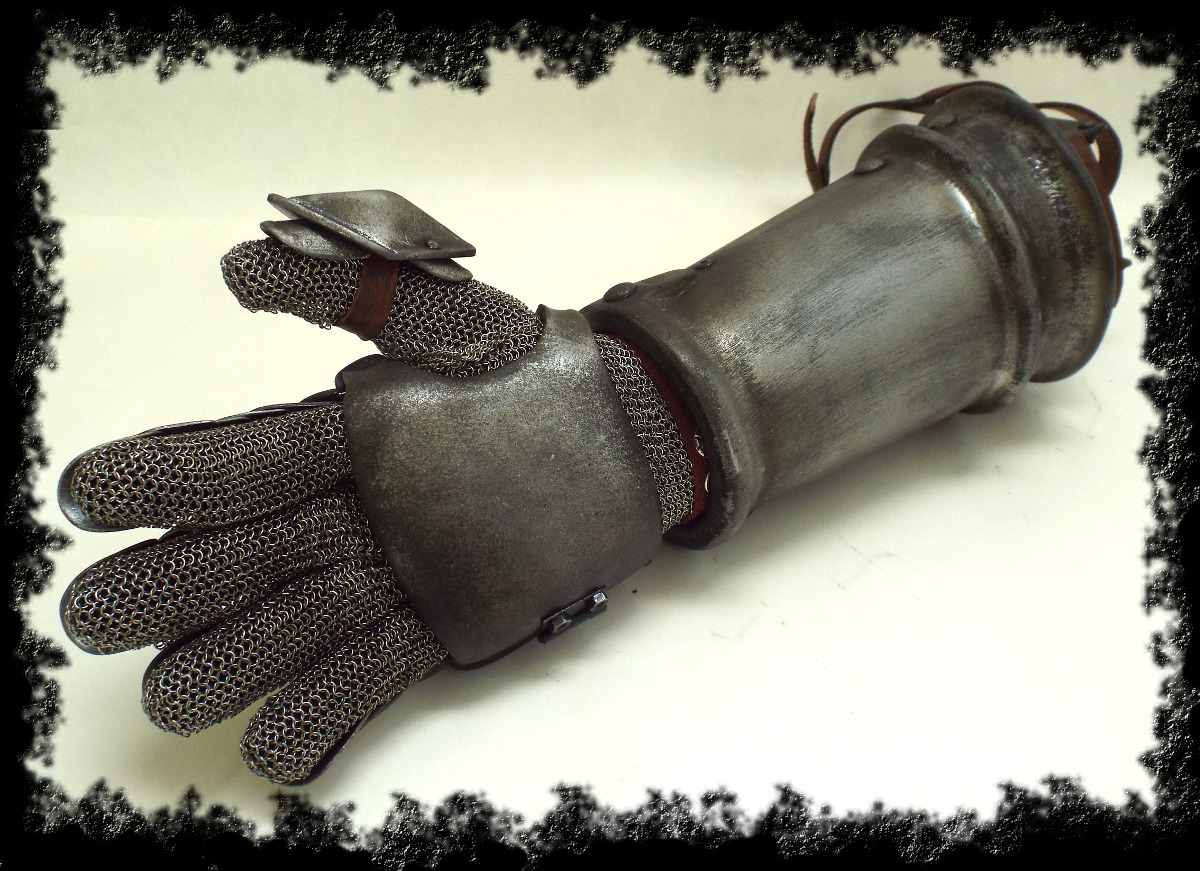

The chain-mail glove is actually a high quality Zeva Brand chain-mail protective glove which closely matches the screen version. The original wrist closing band has been modified. This is because most gloves are made to be worn left-handed (as the knife from which it's giving protection would be in the users right hand). Wearing it right-handed places the band adjusting buckle on the inside of the wrist, rather than the outside, which does not match the screen version. This is corrected and the glove is held shut via a red Velcro band

The Mechanical Arm comes as standard with a weathered & aged metal finish, but this could be scaled back making it look newer, or even increased with blood splatters & additional dirt. The metal effect armour pieces are made from a black impact resistant heavy duty polyurethane plastic resin, spray painted with primer, then silver paint, then aged using water based paints & sprays. Wherever there is friction between two pieces the paint will wear over time, and there is really nothing that can be done about that regardless of how hard-wearing the paint is. If needed, the finish can be touched up using black water based enamel paint stippled on using a little sponge. Do not use spirit based paints, as this can effect the silver & primer coats underneath.

The overall length with the brass/leather arm frame out straight is 660mm or 26", and the total weight is just 1.5kg or 3.5lb

Please Note; The photos above were taken in 2014. The design, processes & look of my Mechanical Arms is constantly evolving, so check out the dropbox link above to see recent & extensive customer approval photos.
