This page details specific Ash Vs Evil Dead sets/locations, which are recreations of sets/locations from either The Evil Dead, Evil Dead II or Army Of Darkness. It does not cover wider material unrelated to the original trilogy.
Here you can see & download a number of items kindly shared by the Ash Vs Evil Dead production designer; Nick Bassett, and presented here with his permission. Huge thanks also to US fan John Schroeder, who originally contacted Nick in 2020 and got copies of these resources, while working on his own cabin scale model.

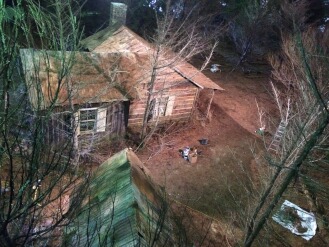

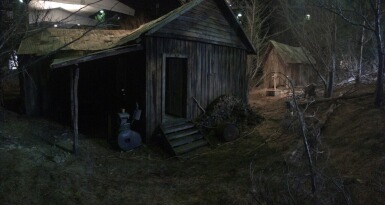

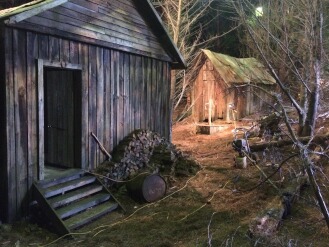

Nick shared a total of eleven files; six PDF files & five JPEG on-set photos. The PDF files are scale plans created by art director Nick Connor, for the production team to work from in recreating the cabin & workshed sets. While there are a few tweaks over the original Evil Dead II sets, they're still an invaluable resource to scale model builders. Just an additional note, all the measurements are in metric millimetres, correctly scaled when printed out on A3 paper.

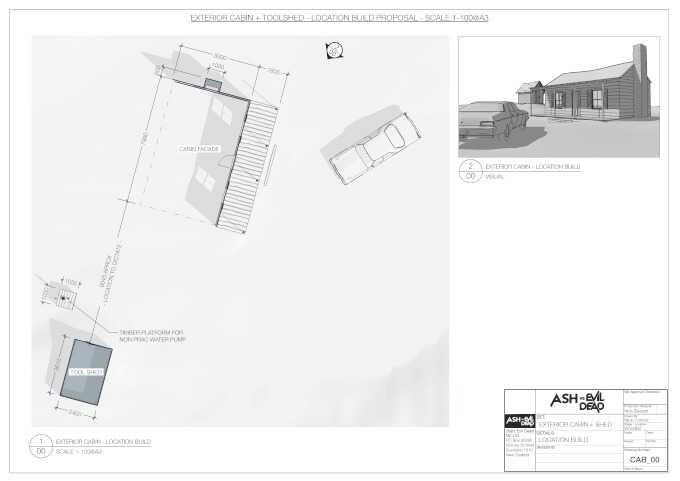

EXTERIOR CABIN + TOOLSHED - LOCATION BUILD PROPOSAL - SCALE 1:100 @ A3

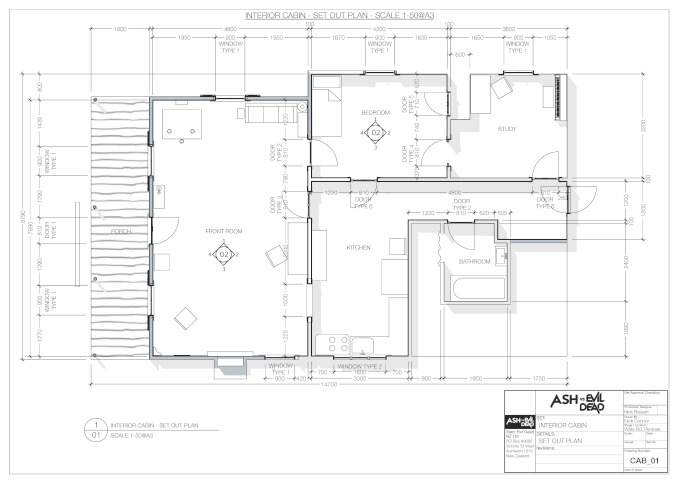

INTERIOR CABIN - SET OUT PLAN - SCALE 1:50 @ A3

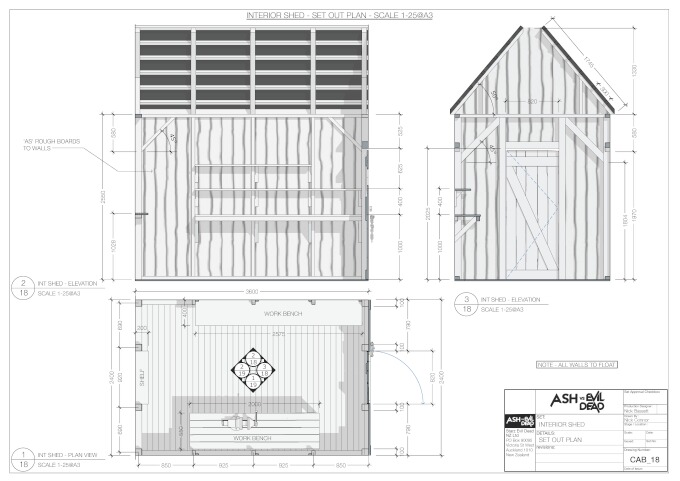

INTERIOR SHED - SET OUT PLAN - SCALE 1:25 @ A3

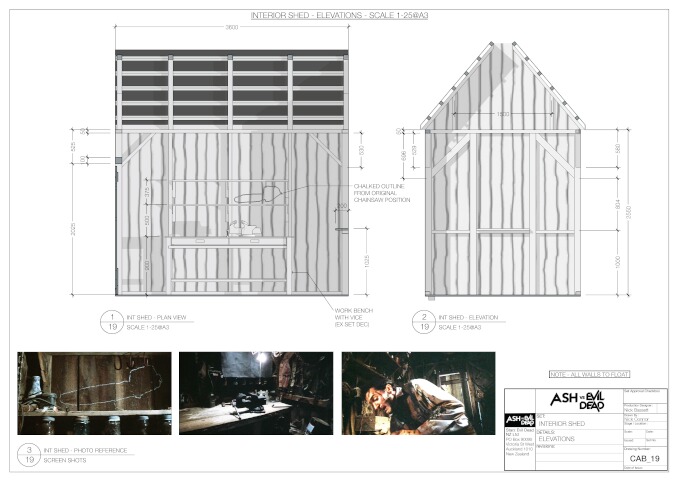

INTERIOR SHED - ELEVATIONS - SCALE 1:25 @ A3

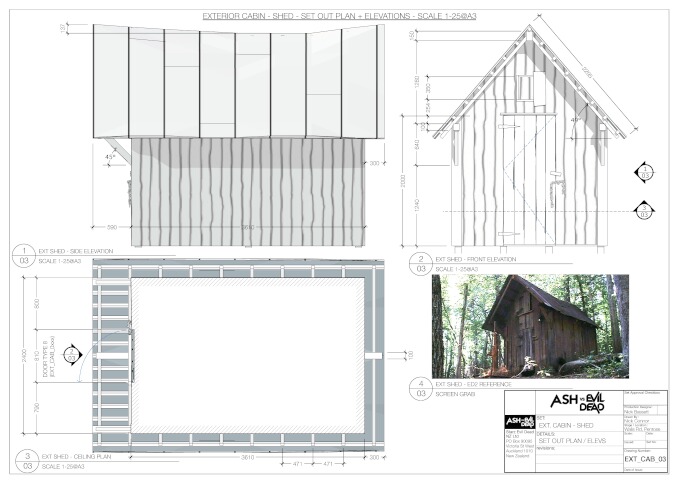

EXTERIOR CABIN - SHED - SET OUT PLAN + ELEVATIONS - SCALE 1:25 @ A3
You can download the full size PDF plans & photos shared, via the ZIP file linked below. Should any further material be made available, it will be added here, and posted as a news update on the front page.
|
